Laying out and stamping a repeat pattern on silver: coupon method and inspection
Use drawn datums, matching coupons and a divided strike sequence to lay out and stamp a repeat pattern on silver, then check depth, reverse witness and flatness.
What to take away
- Set every motif center on a drawn datum, not by eye. Spacing errors then stay local instead of accumulating along the border.
- Cut two coupons from the same silver stock and finish them to the same pre-stamp condition before touching the panel.
- Stamp the center and the two end centers first, then fill inward from the anchors.
- Check the hammer face, stamp body, struck end and support before every session. A mushroomed struck end comes off the bench.
- Stop when the stamp bounces, the support creeps, the sheet distorts, or an impression reaches the depth limit set by the coupon.
This is a flat-panel exercise: a straight repeat border on a sterling practice plate. It does not cover a hallmark, a maker's mark, a legal fineness mark, or a curved piece. It also does not cover a stone-set piece. It does not cover plated stock or a historic object.
Draw the pattern at full size
Draw the panel at full size and set the dimensions on that drawing. Record the panel length, width and thickness. Add the trim and construction allowances, the border baseline and the edge offset.
Pattern layout numbers
- Panel length, width, thicknessrecord
- Motif width and orientationset
- Center-to-center pitchset
- Number of impressionsset
- End marginsdivide leftover
Add the motif width and its orientation, the center-to-center pitch, the number of impressions, and the end margins. State the acceptable depth band and the permitted reverse witness. State the flatness limit for the released panel.
Multiply the pitch by the number of centers to get the occupied pattern length. Subtract that from the available length to get the leftover space. Divide the leftover deliberately between the end margins. Never squeeze the last two gaps because an early estimate ran long.
Cut and prove a matching coupon
Cut at least two coupons from the same stock, or from a documented equivalent. Finish them to the same pre-stamp condition as the panel. Mark the rolling direction if you know it.
Test the stamp upright first. Then test small, controlled angle errors so you can recognize a partial face or a doubled edge later. Change one factor at a time: support, strike force, or number of blows. Record face depth, reverse witness and released flatness for each coupon.
The accepted coupon becomes the reference. Every judgment on the panel is a comparison against it, not a fresh opinion.
Check the tools and the station
The hammer face must be sound and matched to the struck end. The stamp needs a legible ID, an undamaged design face, a sound body and a struck end fit for use. Retire a cracked or mushroomed tool under your shop's procedure.
California's hand-tool ergonomics guidance classifies punches as struck or hammered tools and separates precision work from power work when choosing handles. It supports deliberate tool selection. It does not set stamp size, hammer mass, silver depth or a safe force for this panel.
Set bench height so the stamp stays upright without a raised shoulder or a bent wrist. Provide the eye protection your risk assessment calls for, plus hearing control if the assessment requires it. Clear the backswing and keep other people out of the strike area.
Mark the fixed datums
On protected stock, mark the centerline, the pattern start, the pattern end and the panel center. Mark every motif center. Use a square with dividers, or another layout method you have validated. Add a small orientation arrow outside the final trim line.
Inspect the layout under magnification before any strike. A mark sitting at the wrong coordinate gets corrected on the drawing. It does not get buried under a deeper impression.
Secure the support
Clean the panel and the support. Set the metal on the same support that produced the accepted coupon. Stop both from sliding without putting fingers near the stamp.
Make a dry registration at each anchor point. Confirm the stamp's orientation mark faces the operator and reads the same way every time.
Stamp the anchors

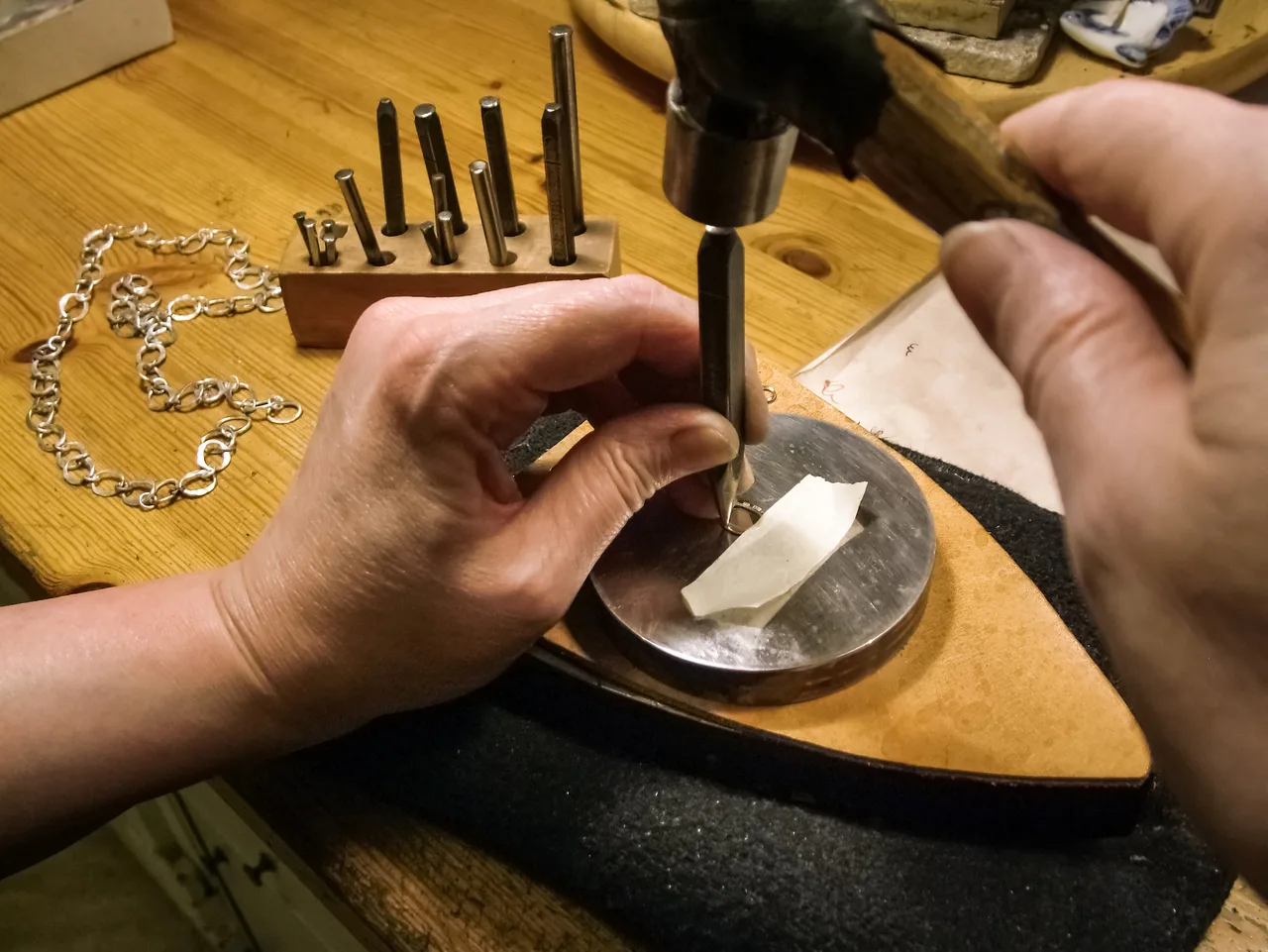

Stamp the panel center first. Then stamp the start and end centers if the accepted plan allows that sequence. Use the tested grip and the tested strike. Lift the stamp vertically before you look. Do not rock it to inspect the impression.
After each anchor, check four things: orientation, location, depth and reverse witness. Add flatness. If an anchor fails, stop. Filling the rest of the border will not correct a datum.
Fill the intervals
Work from the anchors toward the middle of each remaining gap. That divided sequence keeps a small spacing error local instead of carrying it across the whole border.
Compare each short group of marks against the center map. Turn the work only where the plan calls for it. Confirm orientation again after every turn.
Inspect and release
Use raking light on the face and on the reverse. Measure against the drawing:
| Check | Acceptance question |
|---|---|
| Center positions | Are all centers inside the drawing tolerance? |
| Orientation | Does each motif face the specified direction? |
| Depth | Is the range inside the approved coupon band? |
| Reverse | Is witness marking inside the stated limit? |
| Flatness | Does the released panel meet its gauge or datum? |
| Edges | Are the trim and construction zones intact? |
Photograph the accepted panel with a scale and an orientation mark. Record the stock, stamp, hammer and support. Then record the coupon, sequence and measurements. Record any stopped condition and what you did about it.
Common questions
Should every impression get the same number of blows?
Use the coupon method as your baseline, then judge the depth and condition in front of you. A blind extra blow is how a double strike happens.
Why stamp the center before filling from one end?
Anchors split the spacing error into smaller intervals. Working outward from a single end lets one early error ride all the way down the border.
Can I stamp after the panel is curved?
Only with support and registration built for that form. This procedure covers a flat practice panel.
What if one mark comes out slightly light?
Stop and assess registration, remaining depth allowance, reverse condition and the visual standard. Then decide whether another strike is justified.
