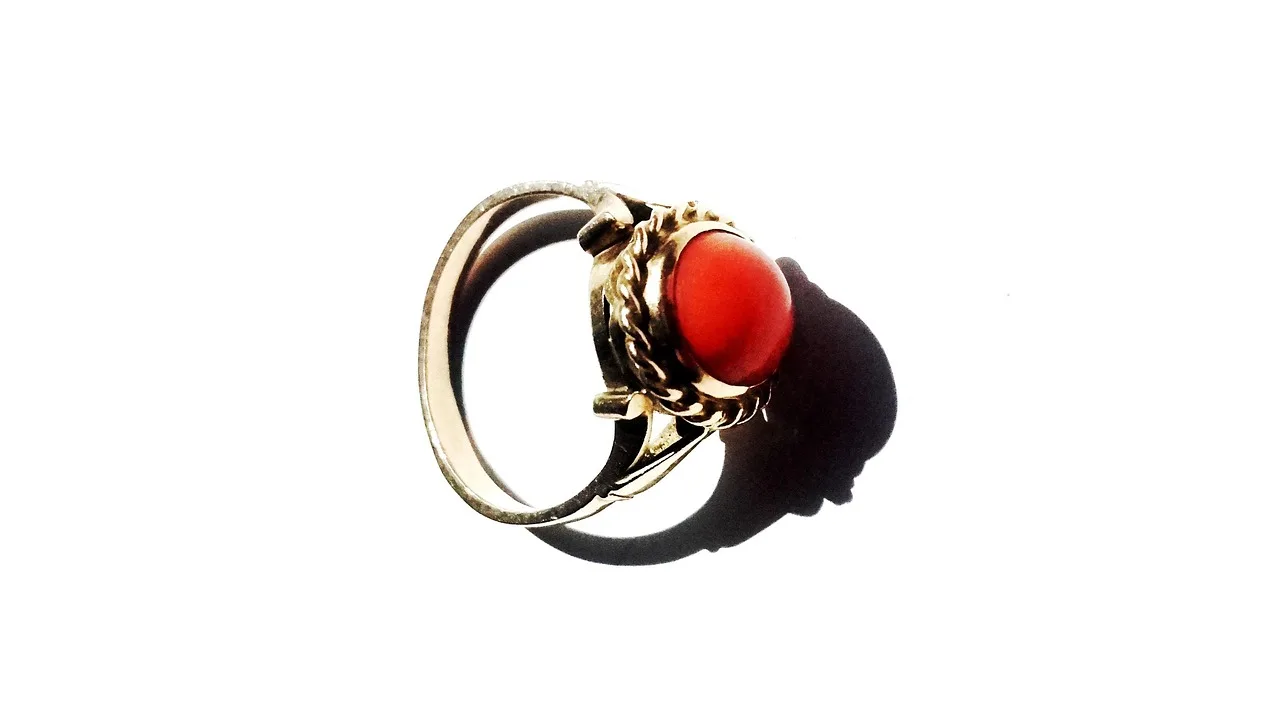

How to plan and inspect a bezel setting for a cabochon
Map the cabochon, draw the contact section, prove the fit on a practice bezel, then inspect contact, seat depth and security before the stone goes in.
What to take away
- Record the cabochon's edge, back, dome, asymmetry and existing damage before you cut any bezel strip.
- Set wall height and thickness from the measured edge profile, not from a number that worked on the last stone.
- Build the practice bezel from the same silver and wall stock, and finish it, before the real one.
- A stone that rocks has a causehigh backing point, uneven back, twisted bezel or mismatched profile. Find it rather than pressing harder.
- Inspect contact, stone condition, security and finish as four separate outcomes.
This covers a simple handmade fine silver or sterling bezel for an oval cabochon at the bench. It does not identify a stone, give soldering temperatures, or approve setting a fragile gem. Stone identification, treatment questions and valuation go to a qualified gemmologist or appraiser.
Document the stone before you draw anything
Measure maximum length, width, total height, edge height, back flatness and dome position. Trace the outline in one repeatable orientation and mark a north point on the paper record, never on the polished face.
Under magnification, note chips and abrasions at the edge. Check for fractures or inclusions near the contact zone. Look for asymmetrical shoulders. Examine undercut or flared sides. Also check for a curved or hollow back. Note coatings, foil, adhesive and any previous setting marks.
If the identity, treatment or damage changes the force, heat, chemical or cleaning decision, stop and get the stone looked at. Setting a treated or fractured stone is a decision for someone who has examined it.
Draw the contact section
Draw a cross-section through the highest and lowest edge regions. Show the back support, the bezel wall, the intended bearing, final wall contact, clearance and minimum metal below the seat.
Madison College's Jewelry 1 criteria require a cabochon bezel to fit snugly without visible wall gaps, hold proper height and finish cleanly without damaging the stone. Those are teaching outcomes. Your drawing and your numbers stay specific to this stone.
Do not run one wall height around an irregular stone. Finished contact should hold the stone without covering more of the design than was approved, and without bearing on a chip.
Make a practice bezel first
Use a dimensional surrogate or a matching practice stone. Fabricate and finish a practice bezel from the same silver type and the same wall stock. Confirm that solder, seam cleanup, backing and final finish do not shrink, thicken or distort the planned interior.
Record the free fit before any wall moves. The stone should reach its support without force. A stone that rocks usually has a high backing point, an uneven back, a twisted bezel or a profile that does not match the drawing.
Inspect the unset bezel
Check wall continuity, seam, oval alignment, and backing attachment.
Check inside finish, height around the rim, and minimum thickness.
Check clearance in the construction zone. Strip all abrasive, flux, pickle and polishing residue with a method approved for an empty mounting.
Dry-fit briefly, then remove the stone by a planned method that cannot damage it. Do not pry at the edge, and do not shake it over a hard floor.
Write the setting sequence before the stone goes in
A typical plan brings contact down at opposing or evenly spaced points, then closes the intervals gradually. The sequence has to suit the shape, the wall, the stone and the support.
Define stop conditions in writing:
- the stone tilts, rotates or rises;
- the wall folds, tears or takes a sharp crease;
- a chip, scratch or fracture appears;
- contact reaches a part of the stone you marked as off limits;
- the mounting shifts in its support;
- the force needed differs from the practice model.
Inspect in stages, not at the end
After each stage, check the stone's orientation and level from four sides. Compare wall contact at named clock positions. Keep tools off the polished dome and shield adjacent surfaces from a slip.
Polishing cannot fix uneven contact. Confirm the wall is where the drawing puts it before any abrasive touches the piece.
Final release
| Feature | Pass condition |
|---|---|
| Stone | No new chip, scratch, abrasion or opened fracture |
| Support | Stone sits at the planned level without rocking |
| Wall | Even intended contact, no open gap or fold |
| Seam and backing | Sound, clean, inside drawing limits |
| Security | Passes the defined non-damaging test |
| Finish | No burr, sharp edge, snag or trapped compound |
Photograph the top, four sides, back and construction junctions. Record the stone map, bezel measurements, practice model, and sequence. Record the deviations, final checks, and care limits. Those records are what let you price the next one honestly and answer a customer question a year later.
Common questions
Should a bezel be tight before setting?
It should fit as drawn, without forcing the stone. Binding during dry fit can chip the girdle or keep the stone from seating at the planned level. If it binds, the drawing is wrong, not the stone.
Can I level a cabochon by pressing harder on one side?
No. Find the cause first: seat, backing point, wall height or stone asymmetry. Extra force on a bezel wall moves metal you cannot put back, and it puts load straight onto the edge of the stone.
Must every cabochon have a closed back?
No. Back design follows stone support, cleaning, appearance and structure. A closed back traps polishing compound if you cannot reach it, so plan the cleaning step before you choose the back.
When should the final polish happen?
Do as much finishing as you can before the stone goes in. After the setting passes inspection, use a final method compatible with the stone, and clean out any compound before the piece leaves the bench.
