Silver sawing and piercing guide: layout, bench pin, turns and cleanup

What to take away

Piercing threads a jeweler's saw blade through an entry hole to remove an interior shape. Sawing defines an outside profile. Both are the same skill:

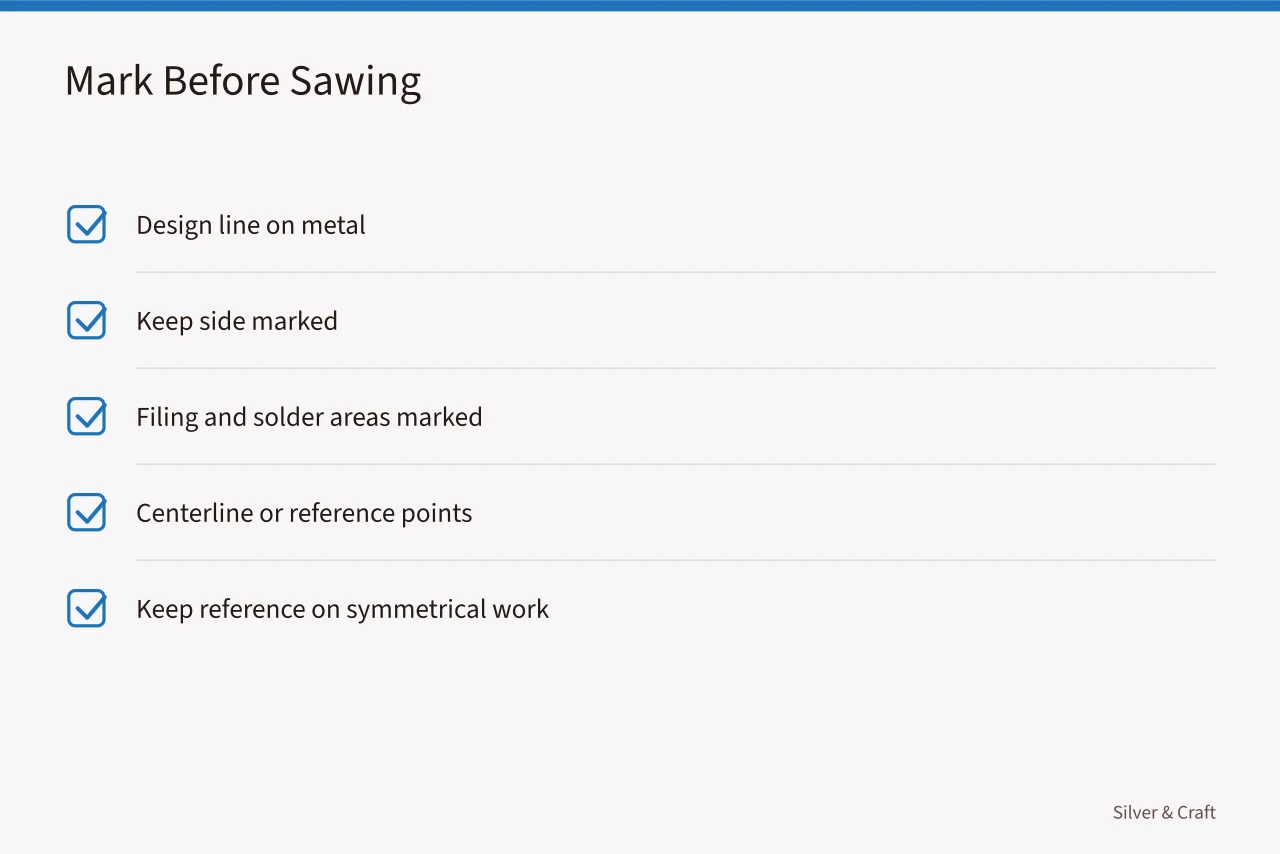

Mark the geometry before the blade moves

Three marks go on the metal first: the design line, the side that stays in the work, and the areas that need filing, solder fit, forming or finishing later.

A centerline or a pair of measured reference points shows drift while there is still metal to correct it. On symmetrical work, keep that reference until both halves have been compared.

Do not place fine openings so close together that the remaining web cannot survive fabrication and use. Material, thickness, work hardening, later forming and service load all decide that spacing, and it is a judgement call at the bench, not a fixed number.

Choose a blade that fits the stock

Pick a blade that puts several teeth in contact with the metal. One coarse tooth catching an edge grabs, lifts the work, and breaks. Jeweler's saw blades are numbered on a scale that runs from the fine "aught" sizes such as 8/0, 4/0 and 2/0, through 1/0 and 0, up to coarser numbered sizes such as 1 and 2. Finer blades suit thin sheet and tight curves; coarser blades suit thicker stock and straight runs. Manufacturer numbering and tooth counts differ between makers, so read the blade maker's chart for the actual product rather than trusting a remembered number.

GIA's sawing basics start with a blade properly held in the saw frame and lubricated; a stroke of beeswax or a commercial blade lubricant along the teeth does the job. Install the teeth in the cutting direction the frame and technique call for. Clamp the blade squarely, tension it consistently, and sight along it to confirm it tracks in one plane. Bent, dull, rusted and damaged blades go in the scrap, not back in the frame.

GIA's sharp-corner sawing lesson shows the work supported on a flat, level bench pin and a corner cut with the blade still moving. That covers corner technique. It does not settle blade choice or hand position for your job.

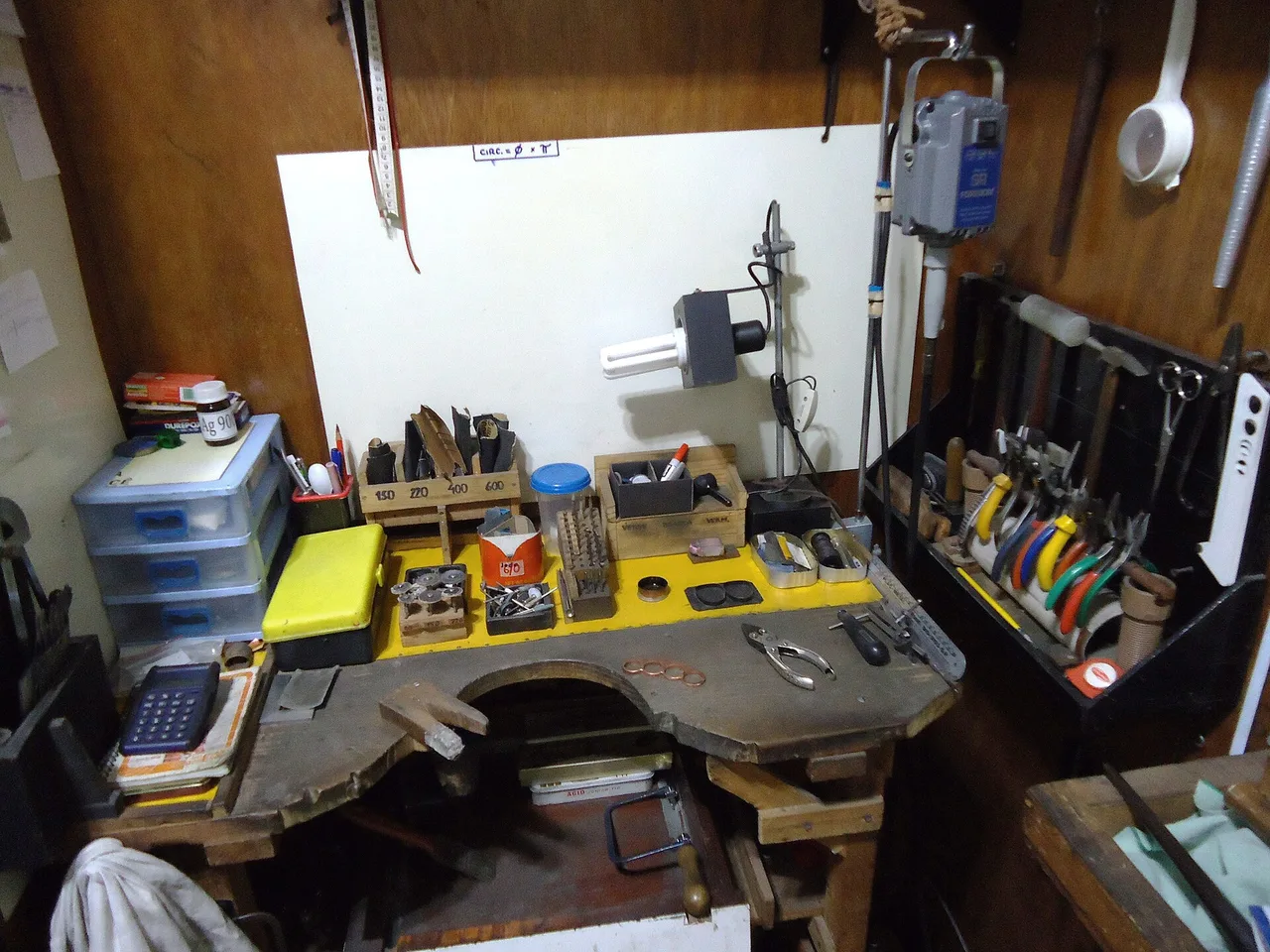

Set the bench and the body

A secure bench pin or equivalent support holds the work at a height where the forearm and saw travel vertically without a raised shoulder or a bent wrist. Light the line without glare.

GIA's jewelry manufacturing instructors distinguish two bench pin styles: a flat piercing pin and an angled working pin. For sawing and piercing, the metal should sit firmly on a flat and level bench pin that has a cutout for piercing, with the blade perpendicular to the work surface. A blade tilted left, right, forward or backward distorts the cut and is likely to break.

The same instructors build their working pin from a standard wedge-shaped bench pin and add a ring-cutting fixture at its end: a straight vertical slot cut into the pin with a No. 2 blade, which the saw then follows when cutting ring shanks. A pin shaped once for the work you repeat saves a clamp and keeps cuts square.

Eye protection has to fit the task and the shop rules. Tie back hair, remove loose items, and keep the free hand beside the supported work, never below or ahead of the blade.

Drilling machines, powered saws, rotary tools and unfamiliar fixtures need hands-on instruction first. Ventilation, extraction, respirator and noise requirements are set by OSHA. They are also set by the equipment maker's safety data sheet, not by this page.

Drill the entry hole

Put the hole fully inside the waste, with room for the blade body and the first turn. Support the work and secure it against rotation. Use the bit, speed, lubrication and guarding the machine specifies. Also use the eye protection your instructor specifies.

Deburr only enough to thread the blade safely. Reinstall and tension the blade before the work goes back on the pin.

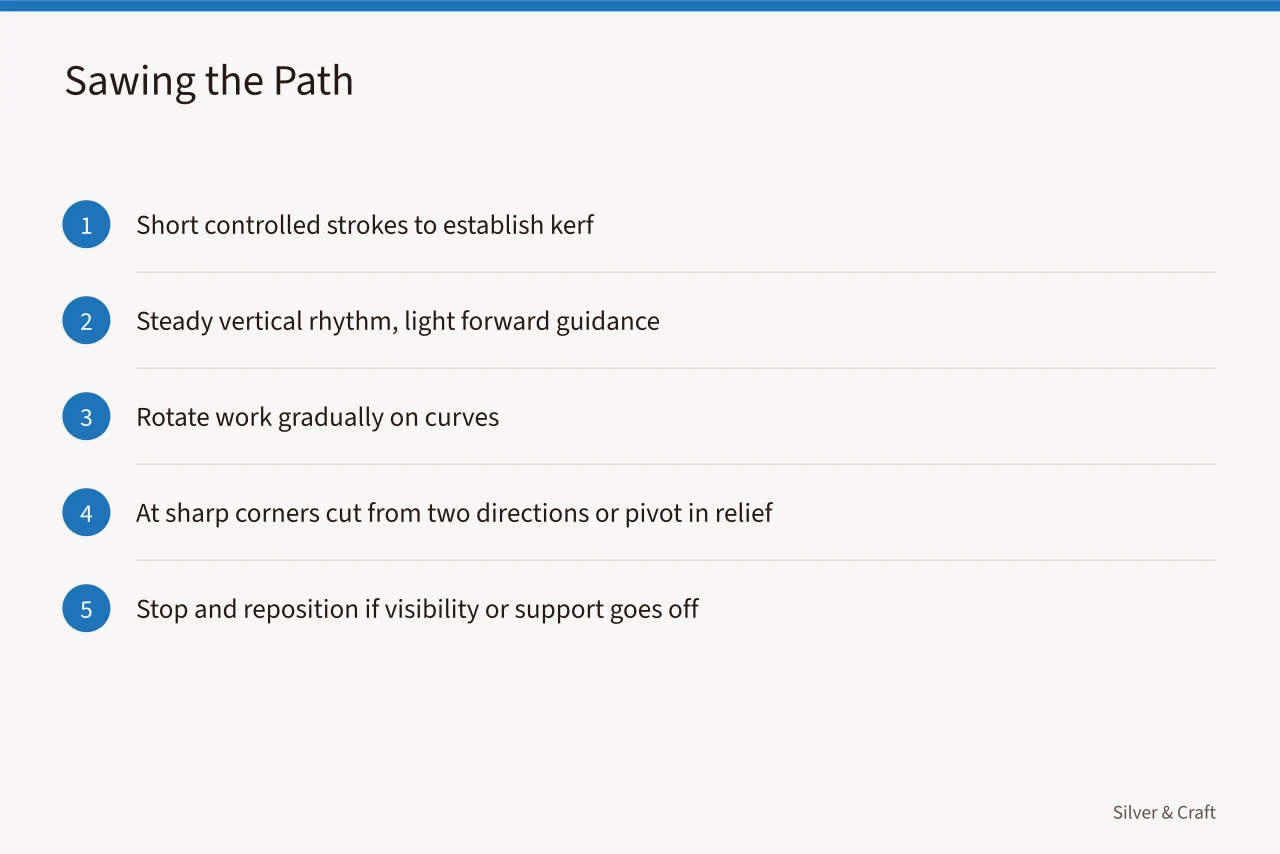

Saw the path

Short controlled strokes until the kerf is established, then a steady vertical rhythm with light forward guidance. The teeth cut. Side pressure twists the blade, widens the kerf and can break it.

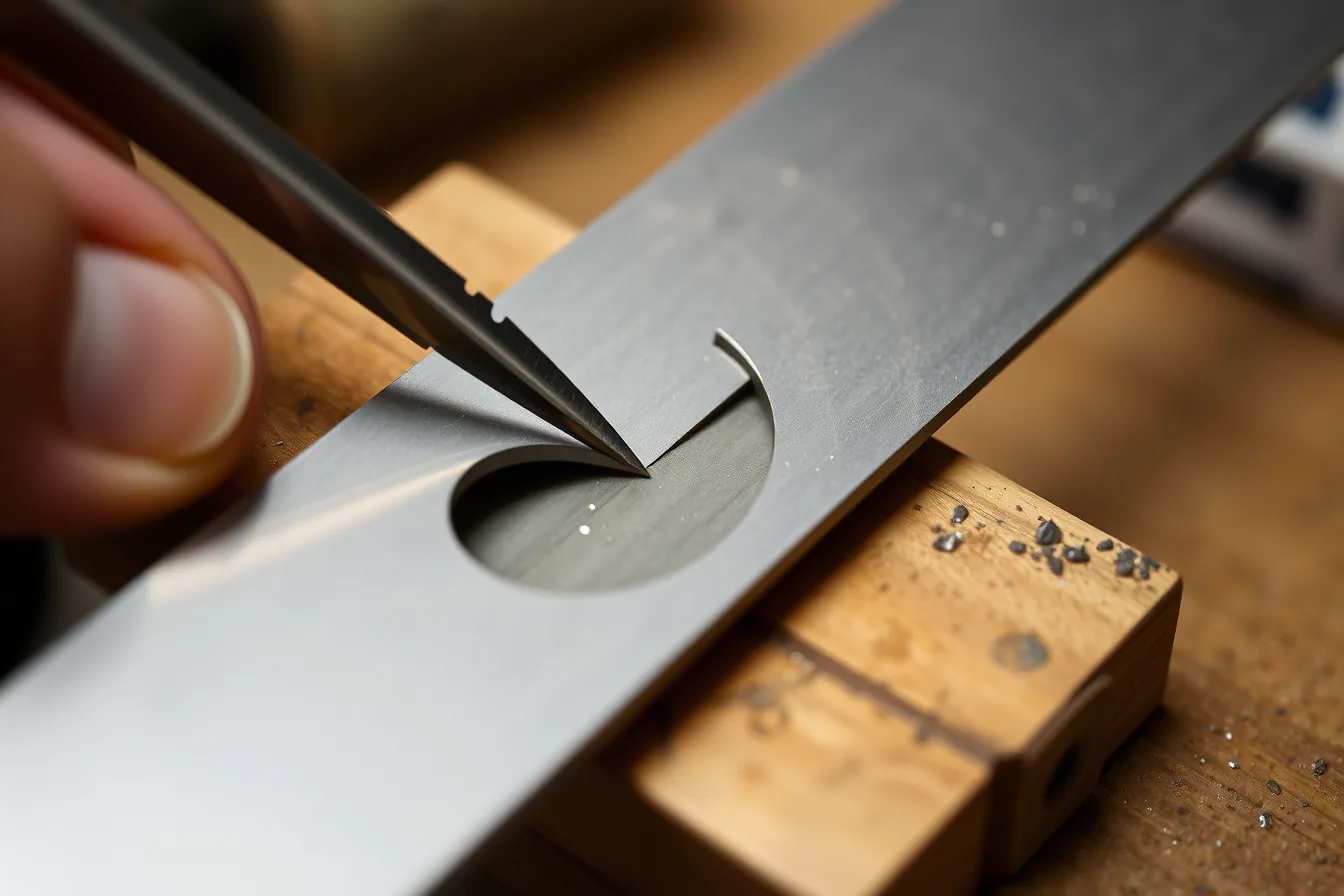

On a curve, rotate the work gradually while the blade keeps moving. At a sharp internal corner, either cut in from two directions or pivot in a small relief area without stopping the stroke. The final corner radius and the finishing allowance decide which.

For the pivot, saw along the line to the corner, stop the forward movement but keep the blade moving up and down, then turn the saw frame or the work. The slightly offset teeth cut the metal away as the blade turns. For corners tighter than 90 degrees, make the turn a short distance from the corner and come back to crisp it with a few quick cuts.

Stop when visibility, support or body position goes off. Reposition the work instead of reaching across it.

File, measure, then stop

Saw marks are not a reason to erase the design line. Compare the cut with the datum, the template, the mating part and the required dimensions before the file touches anything.

Use a file shape that contacts the intended surface without bruising its neighbour, and fit a handle to any file designed to take one. Needle files in half-round, round, square, triangular and barrette shapes reach inside a pierced opening; a larger hand file trues an outside edge. Controlled strokes, chips cleared safely, checks under the same light each time.

Finish when geometry, edge condition and dimensions match the drawing. A mirror-bright edge is no use on an opening that has gone oversize or asymmetrical. If a cut wanders past recovery, the metal is scrap or needs a design change, not more filing.

Cleanup and the batch record

Count broken blade pieces and retrieve them. Brush filings into the correct sweeps or waste stream, never onto the floor and never into a known-alloy bin without shop approval. Silver filings are worth keeping apart from base-metal dust so they can go back for refining, and the bin label should carry the alloy: under the FTC's jewelry guides, only metal that is at least 925/1,000ths pure silver may be described as sterling, so mixed or unknown filings should not be labelled that way.

Write down the blade, the stock, the pattern version, the cut allowance and any correction. That record is what makes the second hundred pieces faster than the first, and it is the only way to price the job honestly once the sawing time is known.

Common questions

Why do jeweler's saw blades break?

Poor tension, side loading, forced feed, weak support, a damaged blade and a hard turn all break blades. Inspect the break itself: a twist at the clamp points to tension, a snapped mid-span points to side pressure.

Should I cut directly on the line?

That depends on the line convention and the finishing allowance. Mark the keep side before cutting, and leave the allowance the later filing, solder fit or forming step will need.

Can filing correct every wandering cut?

No. Filing only removes more metal. Stop before the remaining geometry or symmetry is lost, and treat the piece as scrap or redesign it.

Is piercing the same as drilling holes?

No. Drilling makes the entry hole. The threaded saw blade defines the interior cutout, and the two operations use different tooling and different safety controls.
