Correcting a pierced silver pattern without losing symmetry case
Pierced silver correction case using datums, paired measures, defect mapping, filing limits, structural checks, before-and-after records, and a clear stop decision.
What to take away
- This fictional case shows a correction method, not a guarantee that every miscut can be saved.
- The maker measures from surviving datums before filing either side.
- A low cut cannot be filled by filing; the correction must fit within remaining material and design limits.
- Visual balance, structural web width, edge quality, and final dimensions are separate acceptance checks.
- Before-and-after records preserve what changed and prevent the same setup fault from recurring.
The case begins with a flat sterling-silver pendant blank containing a mirrored pair of leaf-shaped openings. One left curve has wandered 0.35 mm into the keep side. The opposite opening is still on its intended boundary.
All measurements and results are fictional.
Stop before cleanup
The maker stops sawing and leaves the pattern attached. No file, abrasive, or hammer touches the blank. The broken blade and interior waste remain with the job traveler.

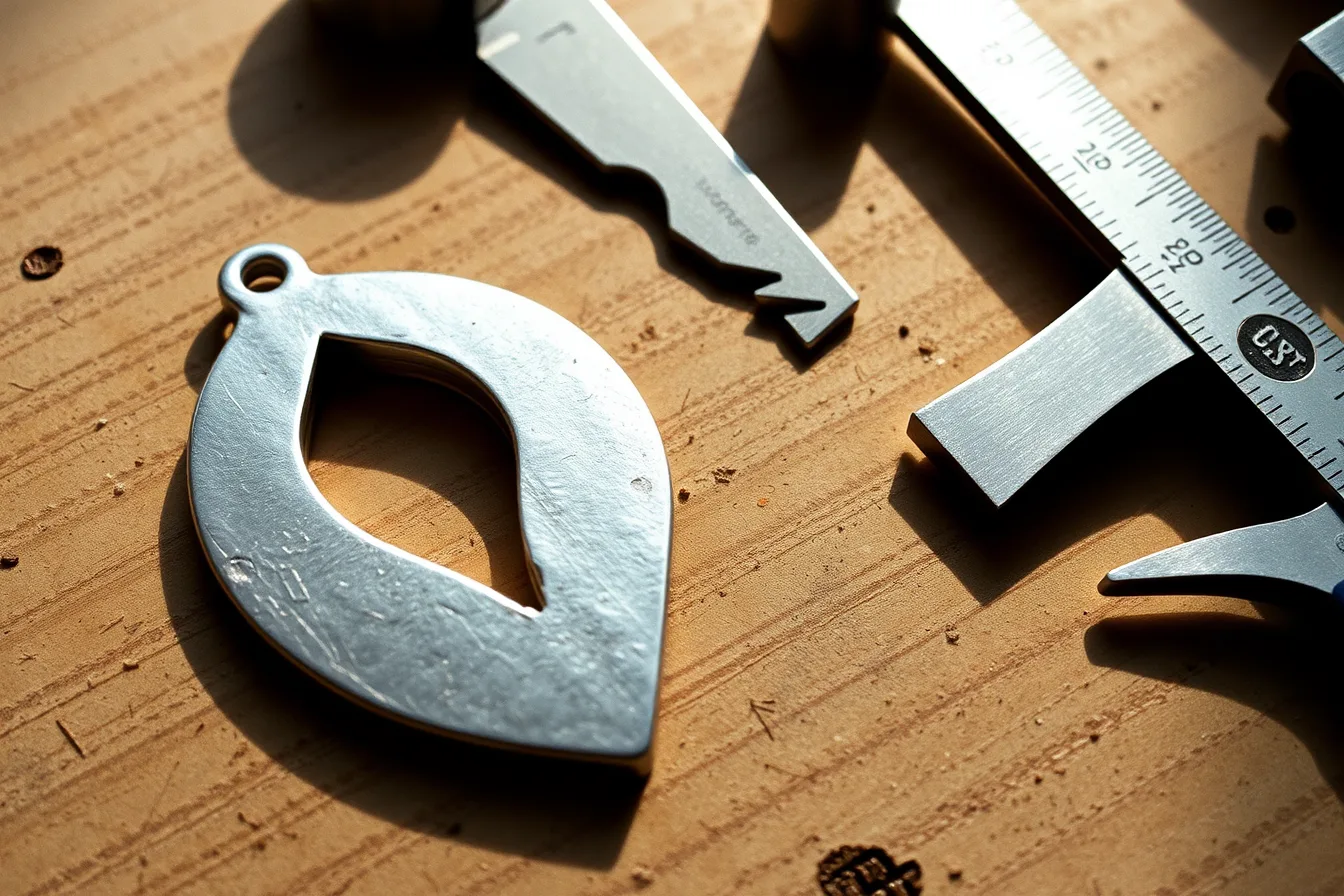

The piece is photographed square to the surface with a scale, then under raking light. The centerline, outer profile, opening tips, minimum webs, and the bad kerf are visible.
Rebuild the reference
The paper edge cannot be trusted because coolant and handling have lifted one corner. The maker returns to the original vector drawing and verifies its printed scale against two dimensions.
Four datum points are transferred to the metal outside the damaged region. Measurements are taken from the centerline to paired features, not from the good opening alone. Copying the good side without checking the central datum could reproduce a transfer error.
Historic openwork can inform design without supplying repair dimensions. The Metropolitan Museum of Art's 1777 silver dish-ring record documents a pierced silver form, measured dimensions, material, and later-added initials. It supports careful object description; this fictional pendant uses its own drawing and engineering limits.
Map the defect
The maker records:
| Check | Left opening | Right opening | Requirement |
|---|---|---|---|
| Tip to centerline | 8.10 mm | 8.08 mm | 8.00 to 8.15 mm |
| Narrowest outer web | 1.45 mm | 1.82 mm | At least 1.40 mm |
| Opening width at datum A | 4.62 mm | 4.30 mm | Paired difference no more than 0.20 mm |
| Corner radius | Irregular | 0.60 mm | At least 0.50 mm |
The left outer web still clears the stated minimum by only 0.05 mm. That removes the option of enlarging both openings until they match perfectly.
Choose the correction
Three options are considered:
- File the right opening to match the wider left opening. Rejected because it would sacrifice sound material and reduce both outer webs.
- Redraw both leaves as larger shapes. Rejected because the pendant's structural limit would be crossed.
- Ease only the high points around the bad kerf, preserve the low point, and accept a bounded paired difference. Selected after the customer approves the slight asymmetry shown in a marked photograph.
The decision treats preservation of section width as more important than invisible mathematical symmetry.
Execute in measured stages
The blank is supported flat. A suitable fine file works only the marked high points. After every three strokes, the maker clears chips, inspects the edge, and repeats the datum measurements.
No pressure is applied to the fragile outer web. The irregular corner receives a controlled radius greater than the specified minimum. The maker stops when the paired-width difference reaches 0.18 mm and the narrowest web remains 1.44 mm.
The edge is then taken through the planned finishing sequence without rounding the faces. Final inspection under magnification finds no crack, notch, folded burr, or local thinning below the requirement.
Record the outcome
Museum conservation practice offers a useful documentation principle even for new workshop work. The Smithsonian Museum Conservation Institute's documentation guidance explains that condition photography and written reporting occur before treatment, followed by records of the work, outcome, and analytical findings. Here, the shop applies that sequence to a fabrication correction without presenting the pendant as a museum object.
The traveler receives:
- original and corrected photographs;
- drawing version and scale check;
- initial and final paired measurements;
- chosen file and correction limit;
- structural and edge inspection result;
- customer approval of visible asymmetry;
- likely cause and prevention action.
Prevent recurrence
Review shows that the sheet lost close support as the saw approached the left curve. The next test uses a repositioned bench-pin cutout and an earlier hand-position change. Three practice blanks are cut before production resumes.
The pattern also gains explicit datum points and a printed minimum-web note. The correction does not become the new normal process.
Common questions
Why not enlarge the good side to match?
That would remove sound metal and reduce structural webs without correcting the original low cut.
Can solder fill the miscut?
That would introduce a different repair process, heat effects, finishing work, and disclosure. It was outside this case's approved scope.
Is a 0.18 mm difference always acceptable?
No. It is fictional and belongs only to this stated design and approval. Set tolerances for the actual object.
When should a miscut be rejected?
Reject or redesign when correction would cross structural, dimensional, surface, safety, or customer-approved limits.
